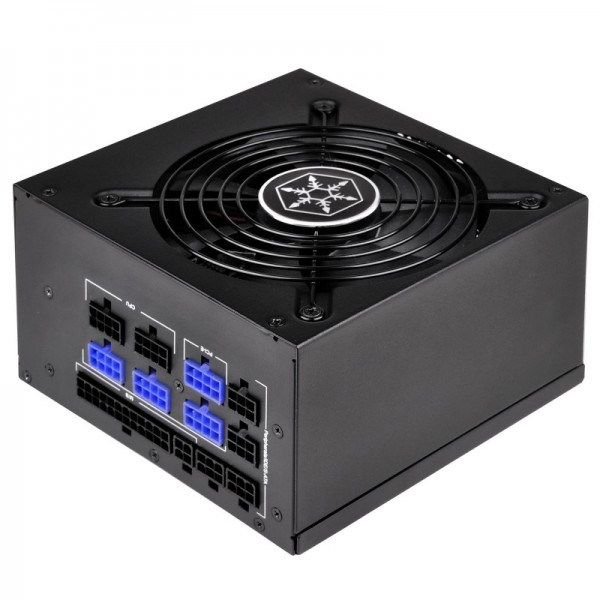

Silverstone Strider ST85F-PT 850W 80plus Platinum Full Modular Power Supply

As desktop computers continue to advance toward ever more efficient and smaller designs, SilverStone is helping to drive the efficiency movement by releasing the Strider Platinum series of power supplies. Created to be the smallest fully modular ATX power supplies with 80 PLUS Platinum efficiency, they are also incredibly quiet with the ability to run in fanless mode. If the loading condition is below 20%, the fan in the power supply can remain off for silent operation during idle or low powered computing activities. Other great features inherited from previous Strider series include ±3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build highly efficient systems in small footprints, the Strider Platinum is definitely the best choice.

WARRANTY

60 Month Warranty

FEATURES

Compact design with a depth of 140mm for easy integration

High efficiency with 80 PLUS Platinum certification

100% modular cables

24/7 continuous power output with 40℃ operating temperature

Class-leading single +12V rail

Strict ±3% voltage regulation and low ripple & noise

Ultra silent 120mm fan with intelligent semi-fanless operation

SPECIFICATIONS

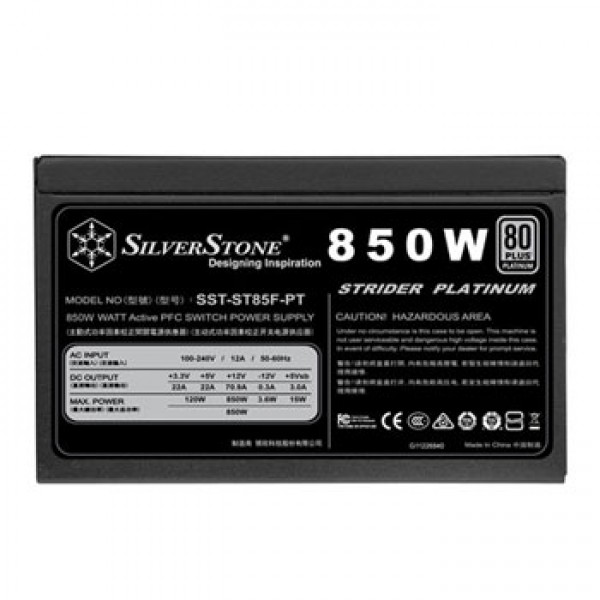

Max. DC Output 850W

Power Density 471W per liter

Load Range +3.3V: 22A Max, 50mV Ripple

+5V: 22A Max, 50mV Ripple

+12V: 70.9A Max, 120mV Ripple

+5VSB: 3.0A Max, 50mV Ripple

-12V: 0.3A Max, 120mV Ripple

Combined +3.3V, 5V 120W

Combined +12V 850W

Input Voltage 90V ~ 264V

Input Frequency Range 47Hz ~ 63Hz

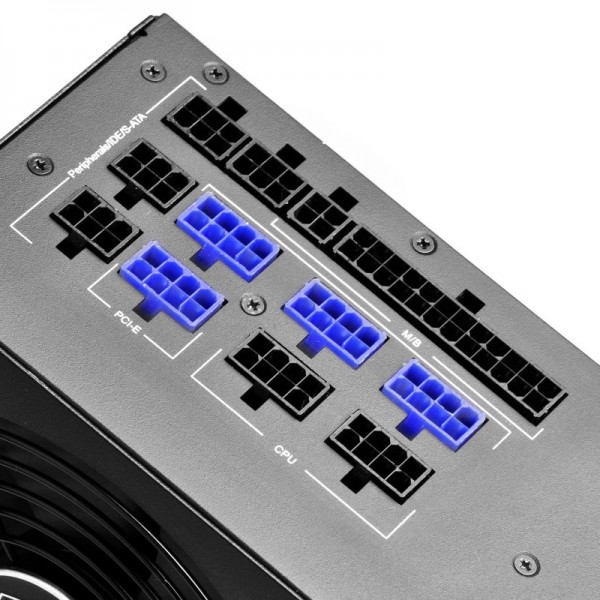

Interface 1x 24/20-Pin Motherboard Connector (550mm)

1x 8/4-Pin EPS/ATX 12V Connector (750mm)

1x 8/4-Pin EPS/ATX 12V Connector (550mm)

4x 8/6-Pin PCIE Connector (550mm x 4)

12x SATA Connector (600/150/150/150mm x3)

3x 4-Pin Peripheral Connector (600/150/150mm)

1x 4-Pin Floppy Connector (100mm)

Form Factor ATX

Cooling System Single 120mm Silent Fan

Dimensions (mm) 150 (w) x 140 (d) x 86 (h)
