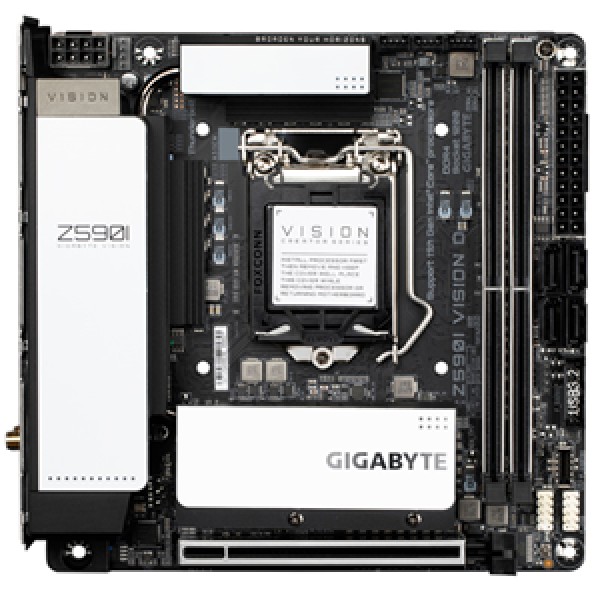

Gigabyte Z590I Vision D MITX LGA1200 Motherboard
Product Code: MGI4985
$336.00 Inc GST
$292.17 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

Gigabyte Z590I Vision D MITX LGA1200 Motherboard

VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine.


Features

  • Powerful performance support 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4 memory, 2 DIMMs
  • The limitless connectivity by Intel® Thunderbolt™ 4
  • High-bandwidth and low-latency network support by Intel® 2.5GbE LAN
  • Intel® Wi-Fi 6 2x2 802.11ax with all new antenna support for better signal
  • Dual Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards
  • Comprehensive cooling solution design for the better thermal dissipation
  • Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
  • 36 Month Return to Base Warranty

Specifications

ChipsetIntel® Z590 Express Chipset
CPULGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU
Form FactorMini-ITX Form Factor; 17.0cm x 17.0cm
Memory11th Generation Intel® Core™ i9/i7/i5 processors:
Support for 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated Graphics Processor+Intel® Thunderbolt™ 4 Controller:
2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
* Support for DisplayPort 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
AudioRealtek® ALC4080 codec
Support for DTS:X® Ultra
High Definition Audio
2-channel
LANIntel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Expansion Slots1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
Multi-Graphics TechnologySupport for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage InterfaceCPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
* Supported by 11th Generation processors only.
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
USBChipset:
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+Intel® Thunderbolt™ 4 Controller:
2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
Chipset+USB 2.0 Hub:
2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors1 x DisplayPort In Port
2 x Thunderbolt™ 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
2 x audio jacks
Operating SystemSupport for Windows 10 64-bit
