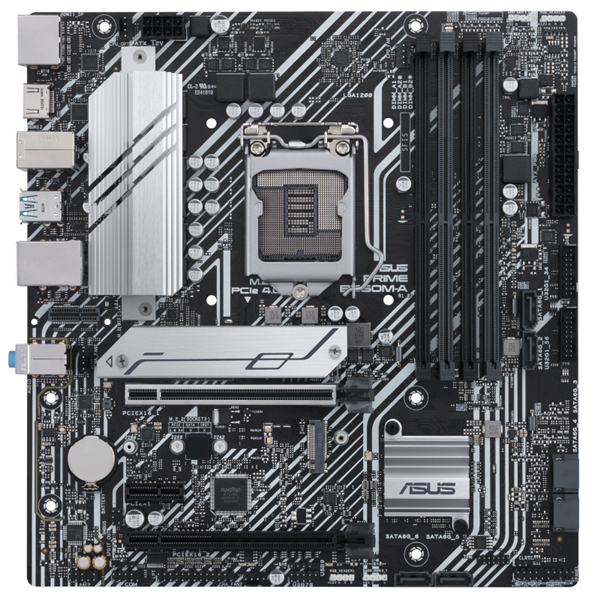

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B560M-A provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.ASUS Prime B560M-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black and white finish and iridescent metallic nameplate and PCB cover.
| Chipset | Intel® B560 Express Chipset |
|---|---|
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Form Factor | mATX Form Factor 24.4cm x 23.4cm |
| Memory | Max Memory Size:128GB 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Onboard Graphics | 1 x DisplayPort 1.4 2 x HDMI™ 2.0 |
| Audio | ALC887/897 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers |
| LAN | 1 x Intel® I219-V 1Gb Ethernet ASUS LANGuard |
| Expansion Slots | 1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel®10th Gen processors support PCIe 3.0 x16 Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots |
| Storage Interface | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports |
| USB | Rear USB:Total 6 ports 2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB:Total 7 ports 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Back Panel Connectors | 2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 2 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet port 1 x V-M.2 slot (Key E) 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Operating System | Support for Windows 10 64-bit |
