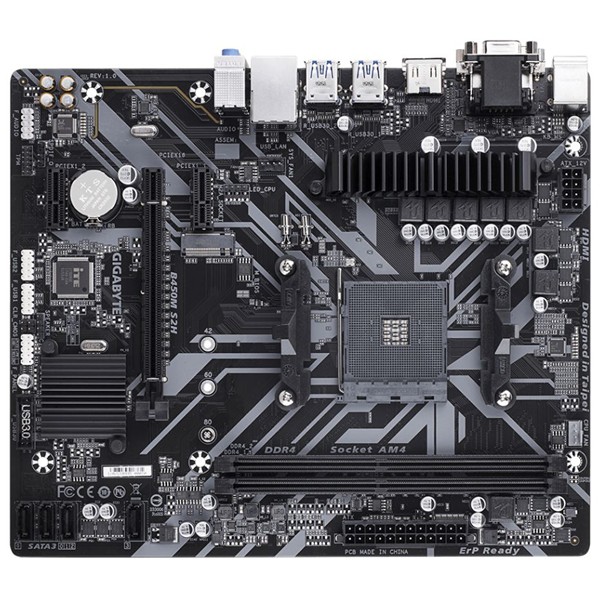

AMD B450 Ultra Durable Motherboard with GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
HDMI, DVI-D, D-sub Ports for Multiple Display
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
RGB Fusion supports RGB LED Strips in 7-Colors
High Quality Audio Capacitors and Audio Noise Guard Design
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
APP Center Including EasyTune™ and Cloud Station™ Utilities
| Chipset | AMD B450 |
|---|---|
| CPU | AMD AM4 Socket AMD Ryzen 2nd Generation AMD Ryzen with Radeon Vega Graphics AMD Athlon with Radeon Vega Graphics AMD Ryzen 1st Generation |
| Form Factor | Micro ATX Form Factor (24.4 x 20.5cm) |
| Memory | 2x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.), 2933, 2667, 2400, 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor: 1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz *The DVI-D port does not support D-Sub connection by adapter. 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Support for HDMI 2.0 version and HDCP 2.2. Maximum shared memory of 2 GB |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel *To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| Multi-Graphics Technology | N/A |
| Storage Interface | 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) *Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB | Chipset: 2x USB 3.1 Gen 1 ports available through the internal USB header 6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x system fan header 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x CPU cooler LED strip/RGB LED strip header 1x USB 3.1 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1x speaker header 1x Clear CMOS jumper 1x chassis intrusion header |
| Back Panel Connectors | 1x PS/2 keyboard port 1x PS/2 mouse port 1x D-Sub port 1x DVI-D port 1x HDMI port 4x USB 3.1 Gen 1 ports 2x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks |
| Operating System | Windows 10 64-bit |
