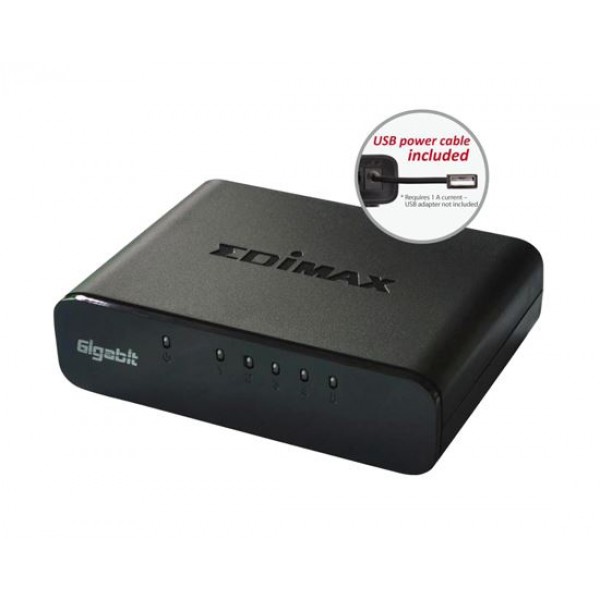

EDIMAX 5 Port 10/100/1000 Gigabit Desktop Switch
EDIMAX 5 Port 10/100/1000 Gigabit Desktop Switch. High-Speed Networking and Jumbo Frames. Perfect Solution for Home and Small Business. Full Duplex. Includes 5V 1A Power Supply.
Inactive Link Detection:
When a network device is shut down and/or an inactive link is detected, the power usage adjustment feature automatically reduces power usage. The switch’s power consumption will be dynamically adjusted according to the link status and the number of active network devices.
Cable Length Detection:
Devices equipped with this feature automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.
Features
- Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
- Supports auto MDI/MDI-X crossover detecting and auto correction
- Supports full and half duplex for 10/100Mbps and full duplex for 1000Mbps
- Wire-speed packet filtering and forwarding rate
- Store-and-forward architecture filters fragment & CRC error packets
- Supports jumbo frames up to 9K bytes
- Supports IEEE802.3az Energy Efficient Ethernet function
- Supports optional power supply either through a USB port or the AC power supply. (*USB power cable included. Requires 1A current-USB adapter not included.)
- 3 Year Warranty
Specifications
Standard | Features | Filtering / Forwarding Rates | •IEEE 802.3 10BASE-T •IEEE 802.3u 100BASE-TX •IEEE 802.3ab 1000BASE-TX •IEEE 802.3x Flow Control •IEEE 802.3az Energy Efficient Ethernet | •RJ45 Port: 5 •MAC Address: 2K •Buffer Memory: 128K •Jumbo Frame: 9K •Transmission Method: Store and Forward | •1000Mbps Port – 1,488,000pps •100Mbps Port – 148,800pps •10Mbps Port – 14,880pps | Transmission Media | LED Indicators | Power Requirement | •10BASE-T Cat3/4/5 UTP/STP •100BASE-TX Cat5 UTP/STP •1000BASE-T Cat5E UTP/STP | •Per Port: Link/Act •Per Unit: Power | •5V 1A DC | | Temperature | Humidity | Power Consumption | •Operating: 0°C ~ 40°C •Storage: -20°C ~ 70°C | •Operating: 10% ~ 90% RH (Non-condensing) •Storage: 5% ~ 90% RH (Non-condensing) | •2W (Max) | Dimensions | Weight | Certifications | | •98× 71 × 25.5mm (L x W x H) | •112g | •CE •FCC Class B |
|
|---|
