Availability: LEGACY - No longer available

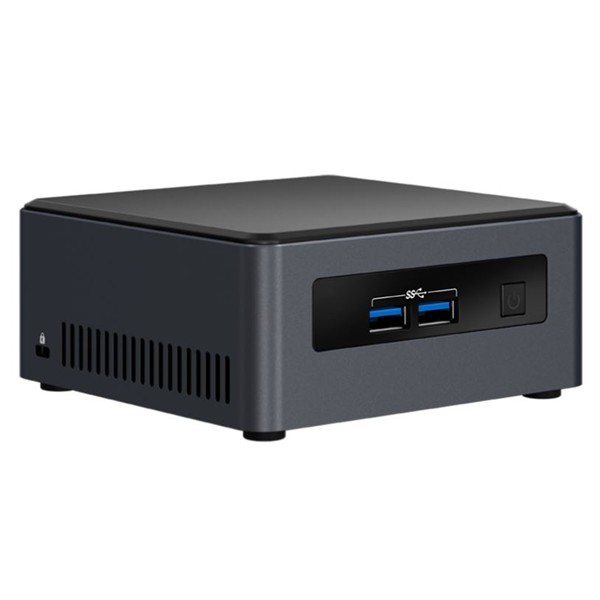

Intel NUC NUC7I5DNH4E I5 vPro/TPM Desktop Kit - Barebone - No Ram, SSD, OS included
Product Code: NUC177
$890.00 Inc GST
$773.91 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

Intel NUC NUC7I5DNH4E I5 vPro/TPM Desktop Kit - Barebone - No Ram, SSD, OS included

The Intel® NUC kit features a customizable board and chassis that are ready to accept a wide variety of memory, storage, and operating systems. For businesses, students, educators, and DIYers.


Features

  • NUC7i5DNHE
  • Intel Core i5-7300U 2.60GHz
  • 2x DDR4-2133 SO-DIMM Slots
  • 1x M.2 PCIe/SATA SSD Slot, 1x 2.5" SSD Bay
  • 1x M.2 2280, 1x 2.5" Bay Available
  • 2x USB 3.0 (Front), 2x USB 3.0 (Rear), 2x HDMI 2.0
  • 1x Gigabit Ethernet, 802.11ac
  • 36 Month Return to Base Warranty


Specifications

ProcessorIntel Core i5-7300U 2.60GHz Dual Core (Up to 3.50GHz, 3MB SmartCache)
Memory2x DDR4-2133 SODIMM Sockets
1.2V, 32GB Maximum
GraphicsIntel HD Graphics 620
2x HDMI 2.0a Ports
AudioUp to 7.1 surround audio via HDMI or DisplayPort signals
Headphone/microphone jack on the front panel
Combo speaker/TOSLINK optical audio jack on the back panel
Dual array front mics on the chassis front
Peripheral Connectivity2x HDMI 2.0 Ports
2x Front USB 3.0 Ports
2x Rear USB 3.0 Ports
2x Internal USB 2.0 via header
Front Consumer Infrared Port
StorageM.2 22x80 (key M) slot for SATA3 or PCIe x4 SSD
One SATA3 port for connection to 2.5" HDD or SSD (up to 9.5mm thickness)
NetworkingIntel I219-LM Gigabit Ethernet
Intel Wireless-AC 8265 vPro, IEEE 802.11ac 2x2 + Bluetooth
Power Adapter19V, 65W wall-mount AC-DC power adapter
Additional FeaturesMicrosoft Windows 10 logo'd, compatible with various Linux distros
Support for user-replaceable third-party lids
Fan sensor inputs used to monitor fan activity
ACPI-compliant power management control
HDD LED, Power LED, power on/off
Kensington lock with base security
