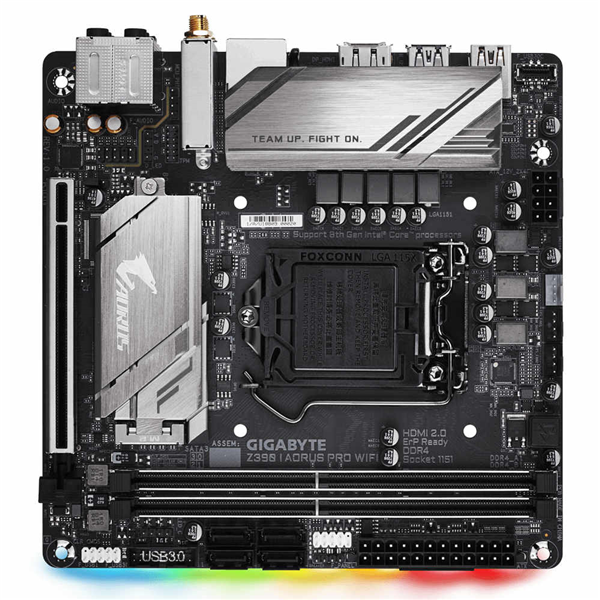

Intel Z390 AORUS Motherboard with 6 Phases Digital VRM solutions, Extended Heatsink, HDMI 2.0 & DisplayPort onboard, 802.11ac Wi-Fi, RGB Fusion, Dual M.2 with Single Thermal Guard, Front USB 3.1 Gen 1 Type-C, Intel® GbE LAN with cFosSpeed
| Chipset | Intel Z390 Express |
|---|---|
| CPU | Intel Socket 1151v2 for 8th/9th Generation Core i7 Core i5 Core i3 Pentium Celeron Processors |
| Form Factor | mITX Form Factor (17.0 x 17.0cm) |
| Memory | 2x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 4400(O.C.), 4333(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3800(O.C.), 3733(O.C.), 3666(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3333(O.C.), 3300(O.C.), 3200(O.C.), 3000(O.C.), 2800(O.C.), 2666, 2400, 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor+MegaChips MCDP2800 chip: 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Support for HDMI 2.0 version, HDCP 2.2, and HDR. Integrated Graphics Processor-Intel® HD Graphics support: 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz *Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. Maximum shared memory of 1 GB |
| Audio | Realtek® ALC1220-VB codec *The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Wireless Communication Module | Intel® CNVi interface Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate *Actual data rate may vary depending on environment and equipment. |
| Expansion Slots | 1x PCI Express x16 slot, running at x16 1x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) |
| Multi-Graphics Technology | Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies |
| Storage Interface | Chipset: 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P) 1x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support, prepared for Intel® Hybrid SSD) (M2M) 4x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready |
| USB | Chipset: 1x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header 1x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1x USB 3.1 Gen 2 Type-A port (red) on the back panel 6x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2x USB 2.0/1.1 ports available through the internal USB header |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 1x digital LED strip header 1x digital LED strip power select jumper 1x RGB LED strip header 4x SATA 6Gb/s connectors 2x M.2 Socket 3 connectors 1x front panel header 1x front panel audio header 1x speaker header 1x USB Type-C™ port, with USB 3.1 Gen 1 support 1x USB 3.1 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1x Clear CMOS jumper 1x chassis intrusion header |
| Back Panel Connectors | 1x DisplayPort 1x HDMI port 1x USB Type-C™ port, with USB 3.1 Gen 2 support 1x USB 3.1 Gen 2 Type-A port (red) 4x USB 3.1 Gen 1 ports 1x RJ-45 port 2x SMA antenna connectors (2T2R) 1x optical S/PDIF Out connector 5x audio jacks |
| Operating System | Windows 10 64-bit |
