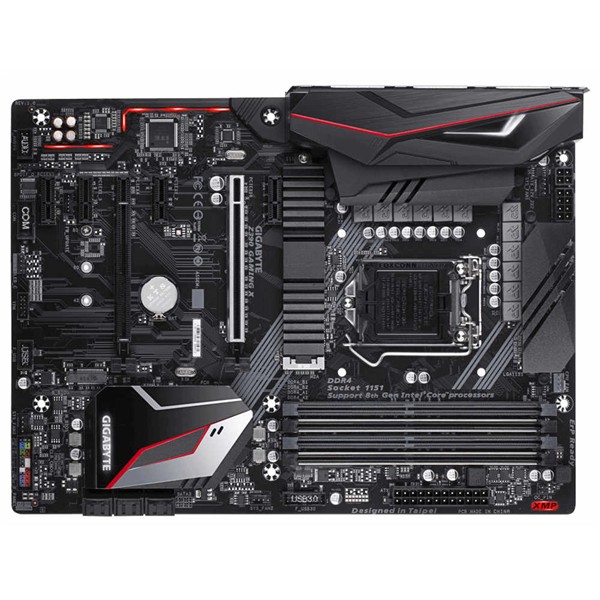

Intel Z390 GAMING Motherboard with 10+2 Digital PWM Design, 2-Way CrossFire™ Multi-Graphics, USB 3.1 Gen2 Type-A, M.2 Thermal Guard, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable™ Technology, DualBIOS, CEC 2019
| Chipset | Intel Z390 Express |
|---|---|
| CPU | Intel Socket 1151v2 for 8th/9th Generation Core i7 Core i5 Core i3 Pentium Celeron Processors |
| Form Factor | ATX Form Factor (30.5 x 22.5cm) |
| Memory | 4x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz *Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB |
| Audio | Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1x PCI Express x16 slot, running at x16 (PCIEX16) *For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1x PCI Express x16 slot, running at x4 (PCIEX4) 4x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Storage Interface | Chipset: 1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support, prepared for Intel® Hybrid SSD) (M2M) 6x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready |
| USB | Chipset: 1x USB 3.1 Gen 2 Type-A port (red) on the back panel 7x USB 3.1 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header) 4x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 3x system fan headers 1x RGB LED strip header 6x SATA 6Gb/s connectors 2x M.2 Socket 3 connectors 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x USB 3.1 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1x Thunderbolt™ add-in card connector 1x serial port header 1x Clear CMOS jumper |
| Back Panel Connectors | 1x PS/2 keyboard/mouse port 1x HDMI port 1x USB 3.1 Gen 2 Type-A port (red) 5x USB 3.1 Gen 1 ports 2x USB 2.0/1.1 ports 1x RJ-45 port 6x audio jacks |
| Operating System | Windows 10 64-bit |
