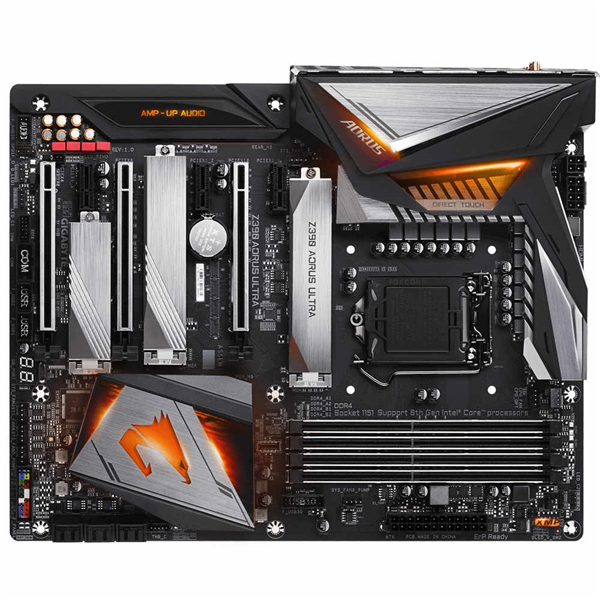

Gigabyte Z390 AORUS ULTRA ATX LGA1151v2 Motherboard

Intel Z390 AORUS Motherboard with 12+1 Phases Digital VRM, Direct Touch Heatpipe, RGB Fusion, 802.11ac Wi-Fi, Triple M.2 with Thermal Guards, Intel® GbE LAN with cFosSpeed, Front & Rear USB 3.1 Gen 2 Type-C


Features

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • 12+1 Phases Digital VRM Solution with DrMOS
  • Advanced Thermal Design with Direct Touch Heatpipe
  • Onboard Intel® CNVi 802.11ac 2x2 Wave 2 Wi-Fi
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • Intel® Gigabit LAN with cFosSpeed
  • RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Front USB 3.1 Gen 2 Type-C™ Header
  • Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guards
  • USB DAC-UP 2 with Adjustable Voltage
  • CEC 2019 Ready, Save Power With a Simple Click
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • 36 Month Return to Base Warranty

Specifications

ChipsetIntel Z390 Express
CPUIntel Socket 1151v2 for 8th/9th Generation
Core i7
Core i5
Core i3
Pentium
Celeron Processors
Form FactorATX Form Factor (30.5 x 24.4cm)
Memory4x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3800(O.C.), 3733(O.C.),
3666(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3333(O.C.), 3300(O.C.),
3200(O.C.), 3000(O.C.), 2800(O.C.), 2666, 2400, 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
*Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
AudioRealtek® ALC1220-VB codec
*The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LANIntel® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication ModuleIntel® CNVi interface Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
*Actual data rate may vary depending on environment and equipment.
Expansion Slots1x PCI Express x16 slot, running at x16 (PCIEX16)
*For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1x PCI Express x16 slot, running at x8 (PCIEX8)
*The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1x PCI Express x16 slot, running at x4 (PCIEX4)
*The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.
3x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Multi-Graphics TechnologySupport for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
Storage InterfaceChipset:
1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support, prepared for Intel® Hybrid SSD) (M2M)
1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)
6x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
USBChipset:
1x USB Type-C port with USB 3.1 Gen 2 support, available through the internal USB header
1x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
3x USB 3.1 Gen 2 Type-A ports (red) on the back panel
4x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:
8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x CPU fan header
1x water cooling CPU fan header
4x system fan headers
2x system fan/water cooling pump headers
2x digital LED strip headers
2x digital LED strip power select jumpers
2x RGB LED strip headers
6x SATA 6Gb/s connectors
3x M.2 Socket 3 connectors
1x front panel header
1x front panel audio header
1x S/PDIF Out header
1x USB Type-C port, with USB 3.1 Gen 2 support
1x USB 3.1 Gen 1 header
2x USB 2.0/1.1 headers
1x Thunderbolt add-in card connector
1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1x serial port header
1x Clear CMOS jumper
2x temperature sensor headers
Back Panel Connectors1x HDMI port
1x USB Type-C port, with USB 3.1 Gen 2 support
3x USB 3.1 Gen 2 Type-A ports (red)
2x USB 3.1 Gen 1 ports
4x USB 2.0/1.1 ports
1x RJ-45 port
2x SMA antenna connectors (2T2R)
1x optical S/PDIF Out connector
5x audio jacks
Operating SystemWindows 10 64-bit
