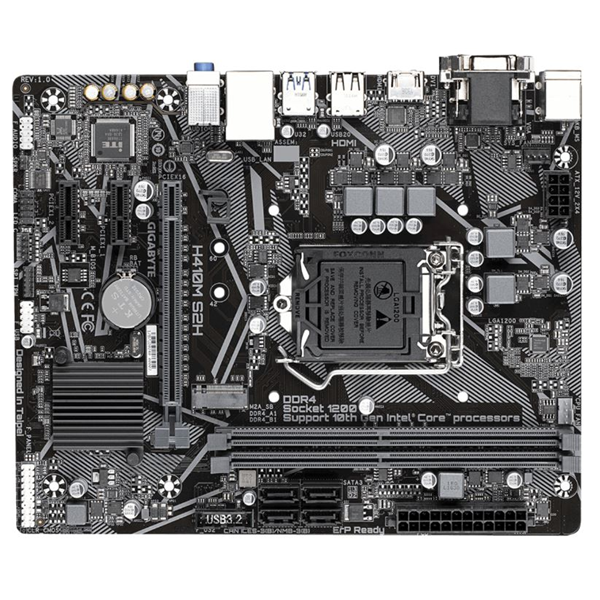

Intel® H410 Ultra Durable Motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x2 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5
| Chipset | Intel H410 Express |
|---|---|
| CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium and Celeron Processors L3 cache varies with CPU |
| Form Factor | mATX Form Factor (22.6 cm x 18.5 cm) |
| Memory | Intel® Core™ i9/i7 processors: Support for DDR4 2933, 2666, 2400, 2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666, 2400, 2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz *The DVI-D port does not support D-Sub connection by adapter. 1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz *Support for HDMI 1.4 version and HDCP 2.3. Support for up to dual-display at the same time Maximum shared memory of 512 MB |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1000/100 Mbit) |
| Expansion Slots | 1x PCI Express x16 slot, running at x16 2x PCI Express x1 slot (The PCI Express slots conform to PCI Express 3.0 standard.) |
| Multi-Graphics Technology | N/A |
| Storage Interface | 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4x SATA 6Gb/s connectors |
| USB | 4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x CPU fan header 1x system fan header 1x RGB LED strip header 1x front panel header 1x front panel audio header 1x speaker header 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1x serial port header 1x Clear CMOS jumper |
| Back Panel Connectors | 1x PS/2 keyboard port 1x PS/2 mouse port 1x D-Sub port 1x DVI-D port 1x HDMI port 2x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks |
| Compatible Operating Systems | Windows 10 64-bit |
