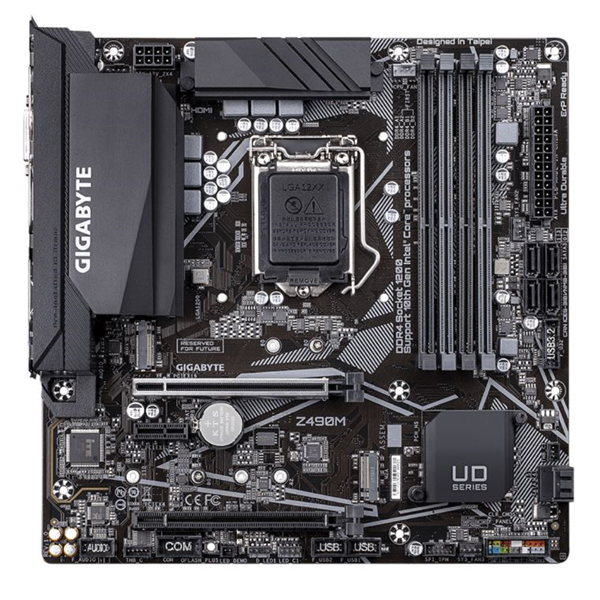

Supports 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra-Fast PCIe Gen3 X4 M.2 Connectors
Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Intel® Optane™ Memory Ready
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
Intel® USB 3.2 Gen 2 Type-A and USB 3.2 Gen 1 Type-C™ Support
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Pre-installed IO Shield for Easy and Quick Installation
Q-Flash PLUS Update BIOS without Installing the CPU, Memory and Graphics Card
| Chipset | Intel Z490 |
|---|---|
| CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium and Celeron Processors L3 cache varies with CPU |
| Form Factor | mATX Form Factor (24.5 x 24.4cm) |
| Memory | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 3200, 2933, 2666, 2400, 2133 MHz memory modules *To support 3200 MHz, you must use XMP memory. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz *The DVI-D port does not support D-Sub connection by adapter. 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz *Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz *Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time Maximum shared memory of 512 MB |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Intel® GbE LAN chip (1000 Mbit/100 Mbit) |
| Expansion Slots | 1x PCI Express x16 slot, running at x16 (PCIEX16) *For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1x PCI Express x16 slot, running at x4 (PCIEX4) 1x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Storage Interface | Chipset: 1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 6x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready |
| USB | Chipset: 1x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 2 Type A port (red) on the back panel 6x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 3x system fan headers 1x addressable LED strip header 1x RGB LED strip header 6x SATA 6Gb/s connectors 1x M.2 Socket 3 connector 1x front panel header 1x front panel audio header 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 2x Thunderbolt™ add-in card connectors 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1x serial port header 1x Clear CMOS jumper 1x Q-Flash Plus button |
| Back Panel Connectors | 1x PS/2 keyboard/mouse port 1x DVI-D port 1x DisplayPort 1x HDMI port 1x USB Type-C™ port, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 2 Type-A port (red) 4x USB 3.2 Gen 1 ports 1x RJ-45 port 3x audio jacks |
Operating System | Windows 10 64-bit |
