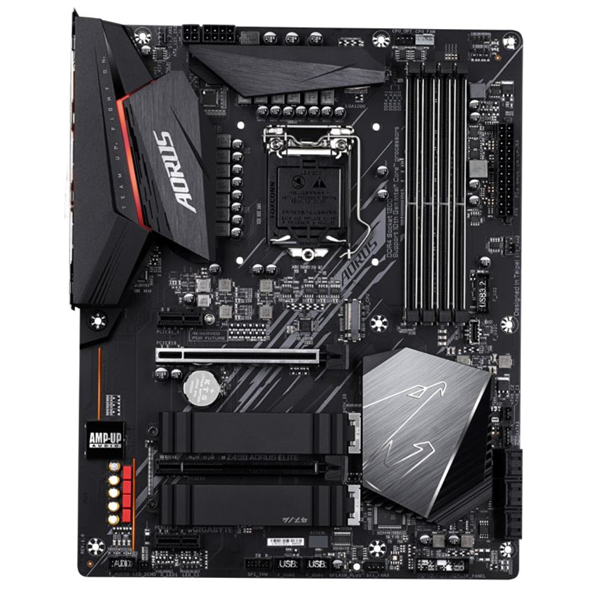

Gigabyte GA-Z490 AORUS ELITE ATX LGA1200 Motherboard

Intel® Z490 AORUS Motherboard with Direct 12 Phase Digital VRM Design, Comprehensive Thermal Solution with Enlarged Surface Heatsink, 2.5GbE LAN, RGB FUSION 2.0

Features

  • LGA1200 Socket
  • Intel Z490
  • ATX (305x244mm)
  • 4xDIMM
  • 1xPCIe3.0x16(x16), 1xPCIe3.0x16(x4 mode), 2xPCIe3.0 x1
  • 2xM.2 SATA/PCIe 3.0, 6x SATA
  • 2xUSB3.2 Type A (Gen 2), 4xUSB3.2 Type A (Gen 1), 4xUSB2.0
  • 1xHDMI
  • RAID, Optane, 2-Way Crossfire
  • 36 Month Return to Base Warranty

Specifications

Supports 10th Gen Intel® Core™ Series Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Intel® Optane™ Memory Ready

Direct 12 Phases Digital VRM Solution with 50A DrMOS

Shielded Memory Routing for Better Memory Overclocking

Advanced Thermal Design with Enlarged Surface Heatsink

AMP-UP Audio with ALC1200 and WIMA Audio Capacitors

Fast 2.5GbE LAN with Bandwidth Management

Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards

Pre-installed IO Shield for Easy and Quick Installation

RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

ChipsetIntel Z490
CPUIntel Socket 1200 for
10th Gen Intel Core,
Pentium
and Celeron Processors
L3 cache varies with CPU
Form FactorATX Form Factor (30.5 x 24.4cm)
Memory4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5000(O.C.), 4933(O.C.), 4800(O.C.), 4700(O.C.), 4600(O.C.), 4500(O.C.), 4400(O.C.), 4300(O.C.), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3800(O.C.), 3733(O.C.), 3666(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3333(O.C.), 3300(O.C.), 3200(O.C.), 3000(O.C.), 2933, 2800, 2666, 2400, 2133 MHz memory modules
*To support 3200 MHz, you must use XMP memory.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
*Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
AudioRealtek® ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LANRealtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Expansion Slots1x PCI Express x16 slot, running at x16 (PCIEX16)
*For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1x PCI Express x16 slot, running at x4 (PCIEX4)
2x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics TechnologySupport for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface2x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB/M2A_SB)
6x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
USBChipset:
2x USB 3.2 Gen 2 Type A ports (red) on the back panel
1x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
6x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
2x M.2 Socket 3 connectors
6x SATA 6Gb/s connectors
1x CPU fan header
1x water cooling CPU fan header
3x system fan headers
2x addressable LED strip headers
2x RGB LED strip headers
1x front panel header
1x front panel audio header
1x USB Type-C port, with USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2x Thunderbolt™ add-in card connectors
1x Clear CMOS jumper
1x Q-Flash Plus button
Back Panel Connectors2x USB 3.2 Gen 2 Type-A ports (red)
4x USB 3.2 Gen 1 ports
4x USB 2.0/1.1 ports
1x HDMI port
1x RJ-45 port
1x optical S/PDIF Out connector
5x audio jacks

Operating System


Windows 10 64-bit
