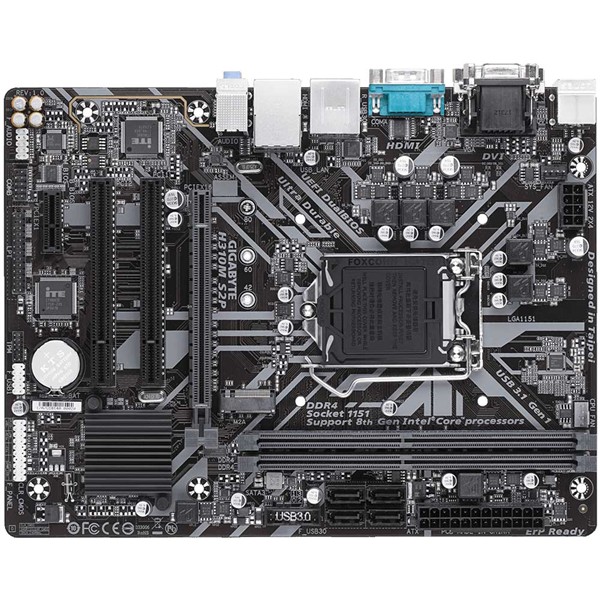

Intel H310 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen2 x2 M.2, HDMI 1.4, DVI-D, D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready
| Chipset | Intel H310 Express |
|---|---|
| CPU | Intel Socket 1151 for 8th Generation Core i7 Core i5 Core i3 Pentium Celeron Processors Supports Intel® 14 nm CPU Supports Intel Turbo Boost Technology 2.0 *The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Form Factor | mATX Form Factor (24.4 cm x 18.5 cm) |
| Memory | 2x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules *To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz *The DVI-D port does not support D-Sub connection by adapter. 1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz *Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1 GB |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 2x PCI slots |
| Multi-Graphics Technology | N/A |
| Storage Interface | 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4x SATA 6Gb/s connectors |
| USB | 4x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 Socket 3 connector 1x CPU fan header 1x system fan header 1x front panel header 1x front panel audio header 1x USB 3.1 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1x serial port header 1x parallel port header 1x Clear CMOS jumper |
| Back Panel Connectors | 1x PS/2 keyboard/mouse port 1x D-Sub port 1x DVI-D port 1x HDMI port 1x serial port 2x USB 3.1 Gen 1 ports 4x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks |
| Compatible Operating Systems | Windows 10 64-bit |
