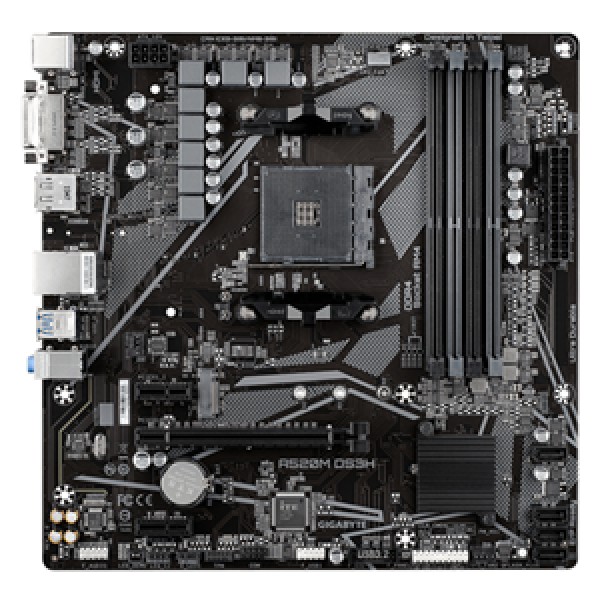

AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Pre-installed IO Shield Design
| Chipset | AMD A520 |
|---|---|
| CPU | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors |
| Form Factor | Micro ATX Form Factor (24.4 x 24.4cm) |
| Memory | 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.), 4000(O.C.), 3600(O.C.), 3333(O.C.), 3200, 2933, 2667, 2400, 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.), 4600(O.C.), 4400(O.C.), 4000(O.C.), 3600(O.C.), 3333(O.C.), 3200, 2933, 2667, 2400, 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz *The DVI-D port does not support D-Sub connection by adapter. 1x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz *Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| Expansion Slots | CPU: 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) |
| Multi-Graphics Technology | N/A |
| Storage Interface | CPU: 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB | CPU: 4x USB 3.2 Gen 1 ports on the back panel Chipset: 2x USB 3.2 Gen 1 ports available through the internal USB header 4x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 2x system fan headers 1x addressable LED strip header 1x RGB LED strip header 1x M.2 Socket 3 connector 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1x serial port header 1x Clear CMOS jumper 1x Q-Flash Plus button |
| Back Panel Connectors | 1x PS/2 keyboard/mouse port 1x DVI-D port 1x DisplayPort 1x HDMI port 4x USB 3.2 Gen 1 ports 2x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks |
| Operating System | Windows 10 64-bit |
