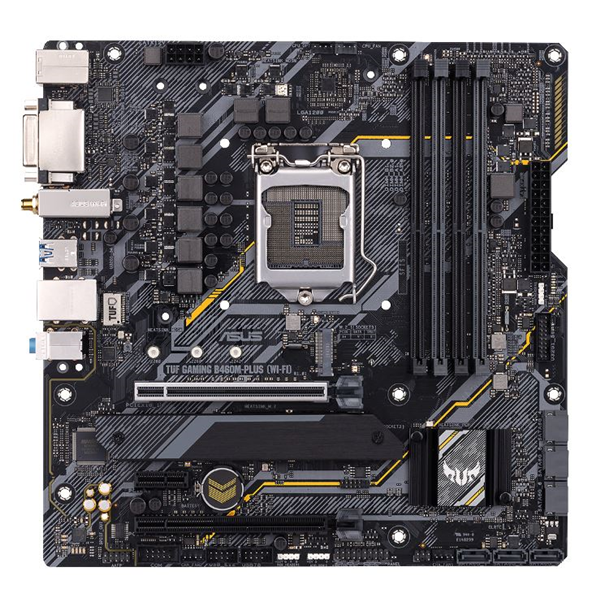

Asus TUF Gaming B460M-Plus (Wi-Fi) mATX LGA1200 Motherboard
Asus TUF Gaming B460M-Plus (Wi-Fi) mATX LGA1200 Motherboard
Availability: LEGACY - No longer available
Asus TUF Gaming B460M-Plus (Wi-Fi) mATX LGA1200 Motherboard
LEGACY
Add to Wish List Compare this Product
Product Code: MAI644
$242.00 Inc GST
$210.43 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

Asus TUF Gaming B460M-Plus (Wi-Fi) mATX LGA1200 Motherboard

Intel® B460 (LGA 1200) micro ATX gaming motherboard with dual M.2, 8 power stages, Intel® WiFi 6, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 1 port, and Aura Sync RGB Lighting


Features

  • LGA1200 Socket
  • Intel B460
  • mATX (244x244mm)
  • 4xDIMM
  • 1xPCIe3.0x16(x16), 1xPCIe3.0x16(x4), 1xPCIe3.0 x1
  • 1xM.2 SATA/PCIe 3.0, 1xM.2 PCIe 3.0, 6x SATA
  • 4xUSB3.2 Type A (Gen 1), 2xUSB2.0
  • 1xHDMI, 1xDisplayPort, 1xDVI
  • RAID, Optane, 2-Way CrossFireX, Wi-Fi 6 AX200
  • 36 Month Return to Base Warranty

Specifications

Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

Enhanced power solution: 6+1+1 power stages, military-grade TUF components, and Digi+ VRM for maximum durability

Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink

Made for online gaming: Intel® WiFi 6, Intel® Ethernet Connection I219-V, TUF LANGuard and Turbo LAN technology

Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in

Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips

ChipsetIntel B460
CPUIntel Socket 1200 for
10th Gen Intel Core,
Pentium Gold
and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Form FactormATX Form Factor (24.4 x 24.4cm)
Memory4x DIMM, Max. 128GB, DDR4 2933, 2800, 2666, 2400, 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
Onboard GraphicsIntegrated Graphics Processor
1x DisplayPort 1.4
1x HDMI 1.4b
1x DVI-D
AudioRealtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
LANIntel® I219-V 1Gb Ethernet
Wireless Data NetworkIntel® Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
Bluetooth v5.1
Multi-GPU SupportSupports AMD 2-Way CrossFireX Technology
Expansion SlotsIntel® 10th Gen Processors
1x PCIe 3.0 x16 (x16 mode)

Intel® B460 Chipset
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x1
Storage InterfaceTotal supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® B460 Chipset:
1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
USBRear USB Port (Total 6)
4x USB 3.2 Gen 1 port(s)
2x USB 2.0 port(s)(2x Type-A)

Front USB Port (Total 6)
2x USB 3.2 Gen 1 port(s)
4x USB 2.0 port(s)
Internal I/O Connectors1x CPU Fan connector(s)
1x CPU OPT Fan connector(s)
2x Chassis Fan connector(s)
2x Aura RGB Strip Headers
1x Addressable Gen 2 header(s)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6x SATA 6Gb/s connector(s)
1x 24-pin EATX Power connector(s)
1x 8-pin EATX 12V Power connectors
1x Front panel audio connector(s) (AAFP)
1x System panel(s) (Chassis intrusion header is inbuilt)
1x Clear CMOS jumper(s)
1x COM port header
Back Panel Connectors1x PS/2 keyboard/mouse combo port(s)
1x DVI
1x DisplayPort
1x HDMI
1x LAN (RJ45) port(s)
4x USB 3.2 Gen 1 Type-A
2x USB 2.0
3x Audio jack(s)
1x ASUS Wi-Fi Module
Operating SystemWindows 10 64-bit
