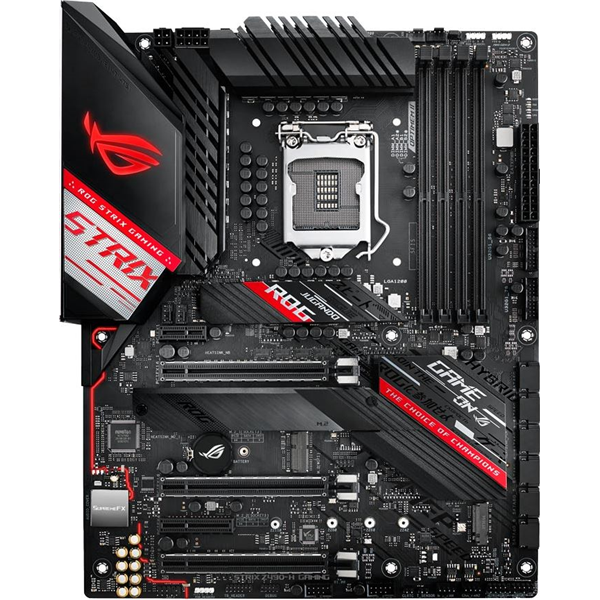

Intel® Z490 LGA 1200 ATX gaming motherboard featuring 14 Power Stages, AI Overclocking, AI Cooling, AI Networking, Intel® 2.5 Gb Ethernet, USB 3.2 Gen 2, SATA and AURA Sync RGB lighting
| Chipset | Intel Z490 |
|---|---|
| CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Form Factor | ATX Form Factor (30.5 x 24.4cm) |
| Memory | 4x DIMM, Max. 128GB, DDR4 4600(O.C), 4500(O.C), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3333(O.C.), 3200(O.C.), 3000(O.C.), 2933(O.C.), 2800(O.C.), 2666, 2400, 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture OptiMem II |
| Onboard Graphics | Integrated Graphics Processor 1x DisplayPort 1.4 1x HDMI 1.4b |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback |
| LAN | Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| Wireless Data Network | M.2 slot only (Key E) (Support CNVI & PCIe interface) |
| Expansion Slots | Intel® 10th Gen Processors 3x PCIe 3.0 x16 (x16 or x8+x4+x4) Intel® Z490 Chipset 1x PCIe 3.0 x4 (max at x2 mode) 1x PCIe 3.0 x1 |
| Multi-Graphics Technology | Supports AMD 2-Way CrossFireX Technology |
| Storage Interface | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® Z490 Chipset: 1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
| USB | Rear USB Port (Total 7) 2x USB 3.2 Gen 2 port(s)(1x Type A + 1x USB Type-C) 4x USB 3.2 Gen 1 port(s)(4x Type A) 1x USB 2.0 port(s) Front USB Port (Total 8) 4x USB 3.2 Gen 1 port(s) 4x USB 2.0 port(s) |
| Internal I/O Connectors | 1x M.2_FAN connector 1x CPU Fan connector(s) 1x CPU OPT Fan connector(s) 2x Chassis Fan connector(s) 1x AIO_PUMP connector 1x Addressable RGB header 1x AAFP connector 2x Aura RGB Strip Headers 2x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1x M.2 with E key for Wi-Fi module 6x SATA 6Gb/s connector(s) 1x Thunderbolt header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin ATX 12V Power connector(s) 1x 4-pin ATX 12V Power connector(s) 1x System panel(s) (Chassis intrusion header is inbuilt) 1x Thermal sensor connector(s) 1x Clear CMOS jumper(s) 1x CPU_OV jumper 1x VRM_HS_FAN Header |
| Back Panel Connectors | 1x Intel® I225-V 2.5Gb Ethernet 1x DisplayPort 1x HDMI 2x USB 3.2 Gen 2 (1 x Type-A + USB Type-C) 4x USB 3.2 Gen 1 Type-A 1x USB 2.0 (one port can be switched to USB BIOS FlashBack™) 1x Optical S/PDIF out 1x USB BIOS FlashBack™ Button(s) 5x Gold-plated audio jacks |
| Operating System | Windows 10 64-bit |
