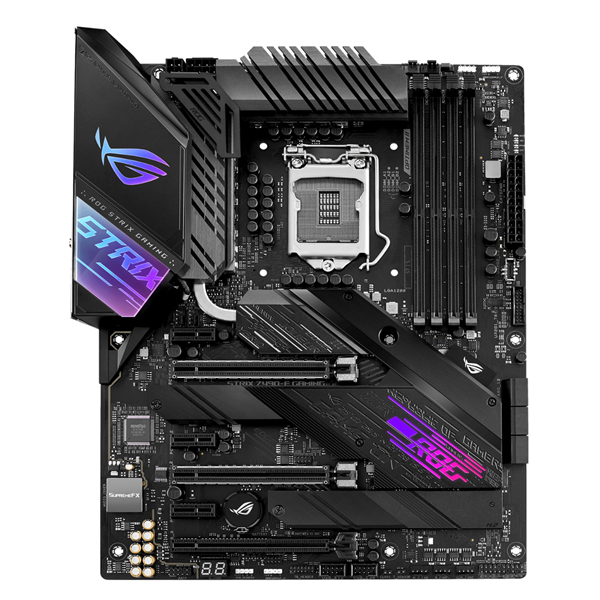

Asus ROG Strix Z490-E Gaming Z490 ATX LGA1200 Motherboard
Asus ROG Strix Z490-E Gaming Z490 ATX LGA1200 Motherboard
Availability: LEGACY - No longer available
Asus ROG Strix Z490-E Gaming Z490 ATX LGA1200 Motherboard
LEGACY
Add to Wish List Compare this Product
Product Code: MAI603
$568.00 Inc GST
$493.91 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

Asus ROG Strix Z490-E Gaming Z490 ATX LGA1200 Motherboard

Intel® Z490 LGA 1200 ATX gaming motherboard featuring 16 power stages, AI Overclocking, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel® 2.5 Gb Ethernet, dual M.2 with heatsinks, USB 3.2 Gen 2, SATA and AURA Sync RGB lighting


Features

  • LGA1200 Socket
  • Intel Z490
  • ATX (305x244mm)
  • 4xDIMM
  • 2xPCIe3.0x16(x16 or dual x8), 1xPCIe3.0x4(x4 mode), 3xPCIe3.0x1
  • 1xM.2 SATA/PCIe 3.0, 1xM.2 PCIe 3.0, 6x SATA
  • 1xUSB3.2 Type-C (Gen 2), 3xUSB3.2 Type A (Gen 2), 2xUSB3.2 Type A (Gen 1), 4xUSB2.0
  • 1xHDMI, 1xDisplayPort
  • RAID, Optane, 3-Way CrossfireX, 2 Way SLI
  • 36 Month Return to Base Warranty

Specifications

Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors.

Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors.

Optimized Thermal Design: MOS Heatsink with U-shaped heatpipe, extended VRM heatsink, dual onboard M.2 heatsinks, including a bundled fan bracket and additional MOS fan for improved cooling.

High-performance Networking: On-board Intel® WiFi 6 AX201 (802.11 ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard.

Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2 and USB 3.2 Gen 2 Type-A and Type-C® connectors.

Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling and AI Networking, helping you configure your gaming build easily.

DIY Friendly Design: Pre-mounted I/O shield, BIOS Flashback, Q-Code and FlexKey.

Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers.

Industry-leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action.
ChipsetIntel Z490
CPUIntel Socket 1200 for
10th Gen Intel Core,
Pentium Gold
and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Form FactorATX Form Factor (30.5 x 24.4cm)
Memory4x DIMM, Max. 128GB, DDR4 4600(O.C), 4500(O.C), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3333(O.C.), 3200(O.C.), 3000(O.C.), 2933(O.C.), 2800(O.C.), 2666, 2400, 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
OptiMem II
Onboard GraphicsIntegrated Graphics Processor
1x DisplayPort 1.4
1x HDMI 1.4b
AudioROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback
LANIntel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Wireless Data Network2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports CNVI interface
Bluetooth v5.1
Expansion SlotsIntel 10th Gen Processors
2x PCIe 3.0 x16 (x16 or dual x8)

Intel Z490 Chipset
1x PCIe 3.0 x4 (x4 mode)
3x PCIe 3.0 x1
Multi-Graphics TechnologySupports NVIDIA 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
Storage InterfaceTotal supports 2x M.2 slots and 6x SATA 6Gb/s ports

Intel® Z490 Chipset :
1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
USBRear USB Port (Total 10)
4x USB 3.2 Gen 2 port(s)(3x Type-A + 1x USB Type-C)
2x USB 3.2 Gen 1 port(s)(2x Type-A)
4x USB 2.0 port(s)

Front USB Port (Total 7)
1x USB 3.2 Gen 2 port(s)(1x USB Type-C)
2x USB 3.2 Gen 1 port(s)
4x USB 2.0 port(s)
Internal I/O Connectors1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2x Chassis Fan connector(s)
1x AIO_PUMP connector
1x W_PUMP+ connector
2x Addressable RGB header
1x AAFP connector
2x Aura RGB Strip Headers
1x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6x SATA 6Gb/s connector(s)
1x Thunderbolt header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin ATX 12V Power connector(s)
1x 4-pin ATX 12V Power connector(s)
1x System panel(s) (Chassis intrusion header is inbuilt)
1x Thermal sensor connector(s)
1x Clear CMOS jumper(s)
1x CPU_OV jumper
1x Q-Code
1x VRM_HS_FAN Header
Back Panel Connectors1x Intel I225-V 2.5Gb Ethernet
1x DisplayPort
1x HDMI
4x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C)
2x USB 3.2 Gen 1
4x USB 2.0
1x Optical S/PDIF out
1x USB BIOS FlashBack™ Button(s)
5x Gold-plated audio jacks
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
Operating SystemWindows 10 64-bit
