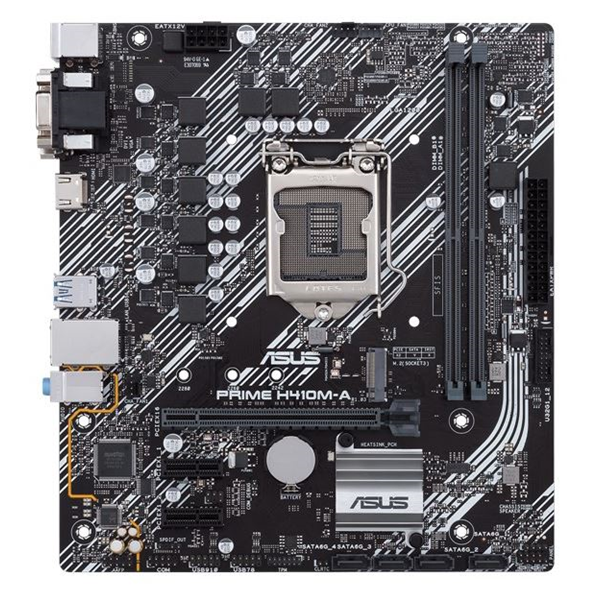

Intel® H410 (LGA 1200) mic-ATX motherboard with M.2 support, DDR4 2933MHz, HDMI, D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, TPM header
| Chipset | Intel H410 |
|---|---|
| CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Form Factor | mATX Form Factor (22.6 x 20.3cm) |
| Memory | 2x DIMM, Max. 64GB, DDR4 2933, 2800, 2666, 2400, 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem |
| Onboard Graphics | Integrated Graphics Processor 1x D-Sub 1x DVI-D 1x HDMI 1.4b |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| LAN | Realtek® RTL8111H |
| Expansion Slots | Intel 10th Gen Processors 1x PCIe 3.0/2.0 x16 (x16 mode) Intel H410 Chipset 2x PCIe 3.0/2.0 x1 |
| Storage Interface | Total supports 1x M.2 slots and 4x SATA 6Gb/s ports Intel® H410 Chipset: 1x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1 4x SATA 6Gb/s port(s) |
| USB | Rear USB Port (Total 4) 2x USB 3.2 Gen 1 port(s)(2x Type-A) 2x USB 2.0 port(s)(2x Type-A) Front USB Port (Total 6) 2x USB 3.2 Gen 1 port(s) 4x USB 2.0 port(s) |
| Internal I/O Connectors | 1x CPU Fan connector(s) 2x Chassis Fan connector(s) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1x SPI TPM header 1x COM port(s) connector(s) 4x SATA 6Gb/s connector(s) 1x S/PDIF out header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin EATX 12V Power connectors 1x Front panel audio connector(s) (AAFP) 1x Clear CMOS jumper(s) 1x System panel connector 1x Speaker connector |
| Back Panel Connectors | 1x PS/2 keyboard (purple) 1x PS/2 mouse (green) 1x DVI-D 1x D-Sub 1x HDMI 1x LAN (RJ45) port(s) 2x USB 3.2 Gen 1 Type-A 2x USB 2.0 3x Audio jack(s) |
| Operating System | Windows 10 64-bit |
