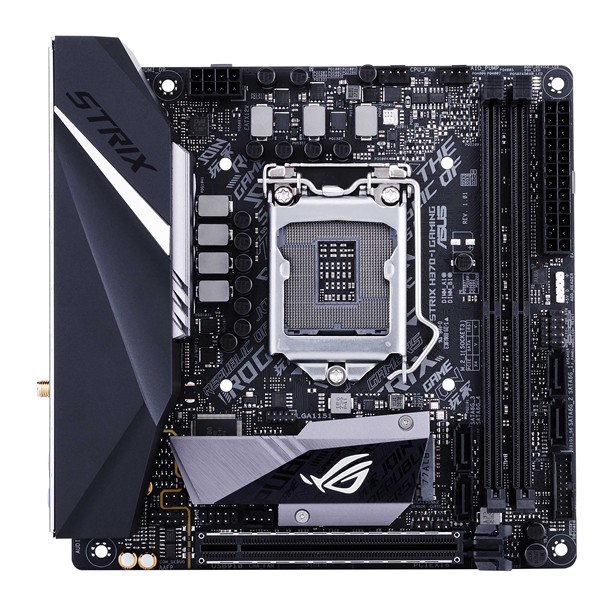

ASUS ROG STRIX H370-I GAMING mITX LGA1151v2 Motherboard
ASUS ROG STRIX H370-I GAMING mITX LGA1151v2 Motherboard
Availability: LEGACY - No longer available
ASUS ROG STRIX H370-I GAMING mITX LGA1151v2 Motherboard
LEGACY
Add to Wish List Compare this Product
Product Code: MAI546
$303.00 Inc GST
$263.48 Exc GST
Free Shipping NationalWide
Christchurch South Island North Island
1 day 1 day 2 days

Qty

Ask About This Product
Term Selector
Get It Now from
$ per week

Online Application (click here)

ASUS ROG STRIX H370-I GAMING mITX LGA1151v2 Motherboard

The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch.


Features

  • Designed exclusively for 8th generation Intel® Core™ processors to maximize connectivity and speed with dual M.2 (1x inside double-decker PCH heatsink, 1x back side), dual Gigabit LAN, onboard 802.11ac WiFi and Intel® Optane™ Memory compatibility
  • ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
  • Gamer’s Guardian with Fan Xpert 4 provides hardware-level safeguards for maximum performance with dynamic system cooling
  • Aura Sync RGB lighting with additional 4-pin RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
  • Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
  • 36 Month Return to Base Warranty

Specifications

ChipsetIntel H370
CPUIntel Socket 1151 for 8th Generation
Core i7
Core i5
Core i3
Pentium
Celeron Processors
Supports Intel® 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
*The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Form FactormITX Form Factor
6.7 inch x 6.7 inch (17.0 cm x 17.0 cm)
Memory2x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
**DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.
Onboard GraphicsIntegrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/DisplayPort 1.2 ports
-Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
-Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
AudioRealtek ALC887 8-Channel High Definition Audio CODEC
-Supports: Jack-detection, Front Panel Jack-retasking
LANIntel I219V, 1x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Realtek RTL8111H, 1x Gigabit LAN
Anti-surge LANGuard
ROG GameFirst Technology
Expansion Slots1x PCIe 3.0/2.0 x16
Multi-Graphics TechnologyN/A
Wireless Data NetworkWi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth 5.0
Storage InterfaceIntel H370 Chipset:
1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology 15 support
4x SATA 6Gb/s port(s),
Intel Optane Memory Ready
USBIntel H370 Chipset:
2x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A, 2 at mid-board)

Intel H370 Chipset:
6x USB 3.1 Gen 1 port(s)

Intel H370 Chipset:
1x USB 3.1 Gen 1 port(s)
Internal I/O Connectors1x Aura Addressable Strip Header(s)
1x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
4x SATA 6Gb/s connector(s)
1x CPU Fan connector(s) (1 x 4 -pin)
1x Chassis Fan connector(s) (1 x 4 -pin)
1x AIO_PUMP connector (1 x 4 -pin)
1x 24-pin EATX Power connector(s)
1x 8-pin ATX 12V Power connector(s)
1x Front panel audio connector(s) (AAFP)
1x Internal speaker connector(s)
1x System panel(s)
1x Clear CMOS jumper(s)
Back Panel Connectors1x DisplayPort
1x HDMI
2x LAN (RJ45) port(s)
2x USB 3.1 Gen 2
1x USB 3.1 Gen 1 (blue) USB Type-C,
3x USB 3.1 Gen 1
1x Optical S/PDIF out
5x Audio jack(s)
1x Wi-Fi antenna port(s)
Compatible Operating SystemsWindows 10 64-bit
